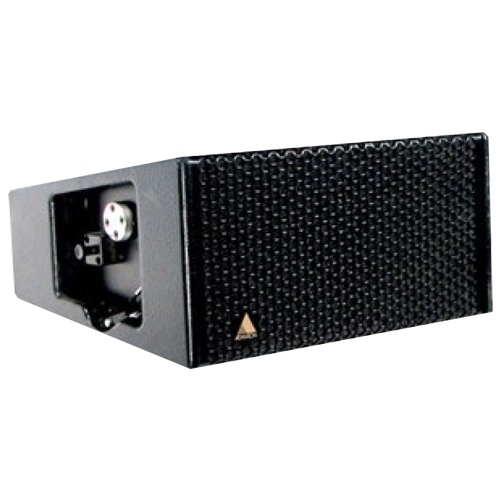

ADAMSON METRIX WAVE
ADAMSON METRIX WAVE
Infos Constructeur : Adamson Metrix Wave
Fiche Technique : Technical Specs Metrix Wave
Manuel : Metrix Wave
Informations complémentaires
| Frequency Range (+/-3 dB) | 95 Hz – 18 kHz |
| Nominal Directivity (-6 dB) H x V | 120° x 15° |
| Maximum Peak SPL** | 136.5 |
| Components LF | ND8-LM 8″ Kevlar Neodymium Driver |
| Components HF | B&C DE800 3″ Diaphragm / 1.4″ Exit Compression Driver |
| Nominal Impedance LF | 16 Ω |
| Nominal Impedance HF | 16 Ω |
| Power Handling (AES / Peak) LF | 250 / 1000 W |
| Power Handling (AES / Peak) HF | 110 / 440 W |
| Rigging | The AIR™ Revolving Disc System consists of laser cut steel precisely cut to accommodate 3 positions of splay.
The EIR™ Plate System is a reduced cost and weight solution ideal for permanent installations. |
| Connection | 2x Speakon™ NL8 |
| Height Front (mm / in) | 262 / 10.31 |
| Width (mm / in) | 540 / 21.25 |
| Depth (mm / in) | 420 / 16.5 |
| Weight (kg / lbs) | 24.2 / 53.5 (-t), 19.7 / 43.5 (-i) |
| Supported Processing | Lake, XTA |
