High port density made for touring and install

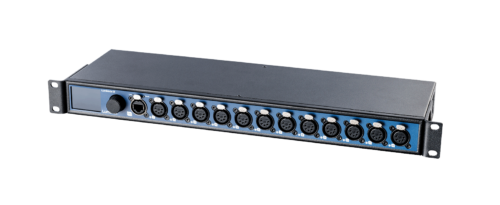

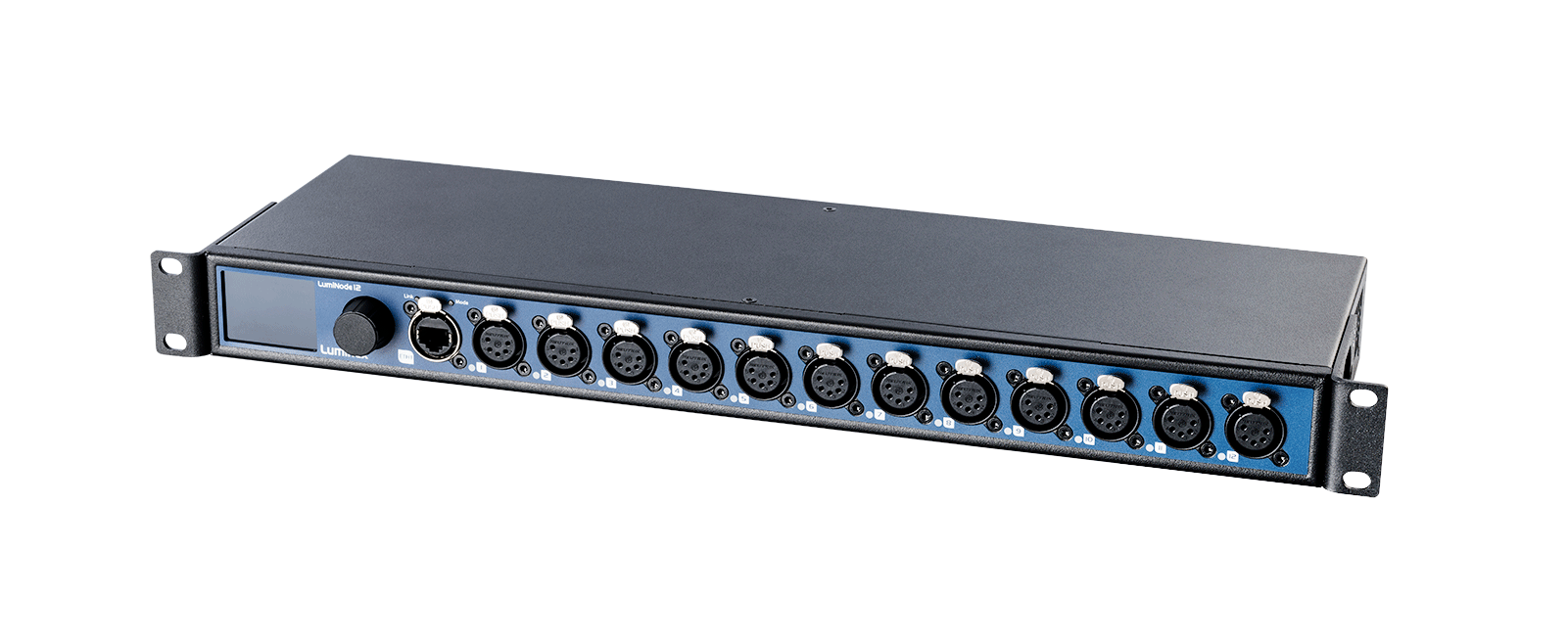

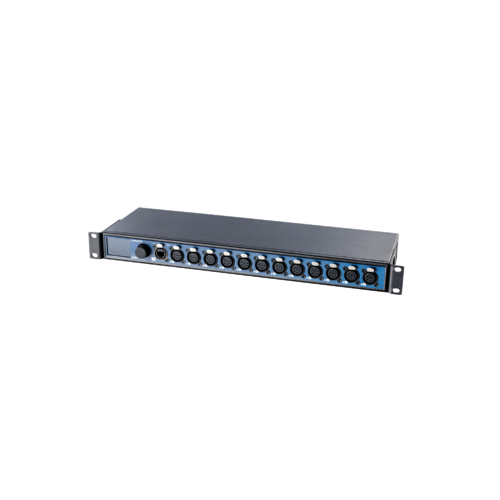

LumiNode 12 is specifically designed with an all metal, robust full 19″ enclosure for rack mounting, making it an ideal solution for touring, theatre- and studio installs.

Equipped with 2x 1Gb Ethercon ports and 12x 5-pin DMX ports LumiNode 12 offers a high DMX port count in only one single unit rack space.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 16 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
