The LAP-TEQ PLUS inclinometer (protractor) is used for precise positioning of line arrays or groups of multiple loudspeakers.
It consists of two components: The sensor module (measuring unit) and the display module (reading unit)

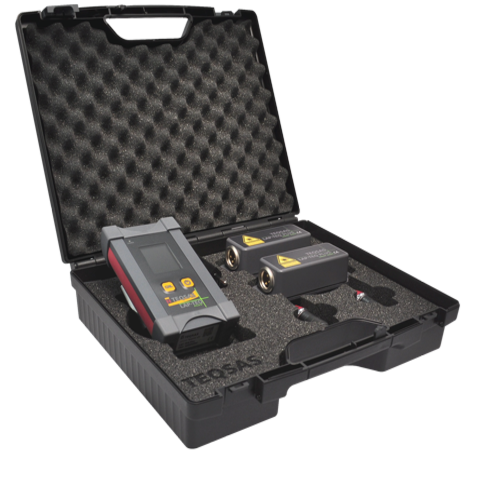

LAP-TEQ Set

Resolution angle measurement value : 0,1°

Permitted ambient temperature for use : 0-40°C

Permitted ambient temperature for storage : -20 – 50°C

Total weight of the set : 1,485 kg

Transport case : 293 x 228 x 80 mm

LAP-TEQ Plus Display

Display : 1,8“ TFT-Display

Dimensions : 138,5 x 78 x 38,5 mm

Weight : 434 g

LAP-TEQ Plus Sensor

Optics : 5° Cross optics

Laser class : 3R

Laser color : 320 nm (green)

Dimensions : 121,5 x 38,5 x 32,7 mm

Weight : 170 g

Mains plug charger

Nominal voltage : 100-240 V~, 50-60 Hz

Charging voltage : 5 V

Charging current : max. 1 A

Charging port : Micro USB

Dimensions : 70 x 36 x 14mm

Protection class : II

Rechargeable battery

Accumulator type : Li-Polymer

Nominal voltage : 3,7 V

Capacity : 2000 mAh

Charging time : 4 – 5 h

Accessories

Calibration cable : XLR 3pin, 500 mm

USB charging cable : Micro USB
