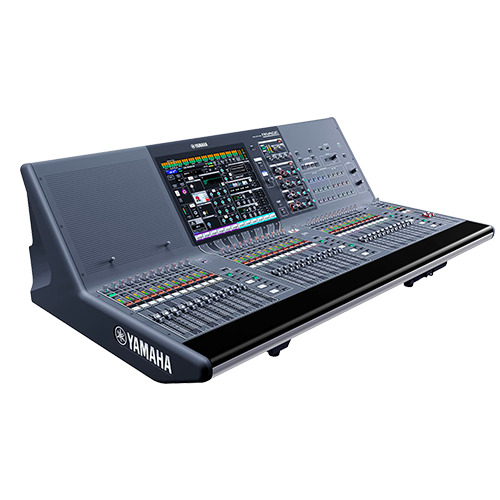

Console Numérique RIVAGE PM3

Informations complémentaires

La série RIVAGE PM est composée de cinq surfaces de contrôle, deux moteurs DSP, deux systèmes de rack E/S et deux protocoles réseaux. Tous ces composants peuvent être combinés pour créer des systèmes qui répondent à un large éventail d’exigences, pour tout type d’applications et pour tout budget.

Les cinq surfaces présentent une interface similaire avec un maximum de trois baies de 12 faders chacune, des écrans tactiles et une section “Selected Channel”. Les ingénieurs du son pourront très facilement passer d’un système RIVAGE PM à un autre, et être opérationnels en quelques minutes.

Tous les composants des systèmes RIVAGE PM sont compatibles, du système RIVAGE PM10 au système RIVAGE PM3 . Cela vaut aussi bien pour les racks d’entrées/sorties que pour les moteurs DSP qui peuvent fonctionner seuls ou en configuration miroir (redondance).

RIVAGE PM10 RIVAGE PM7 RIVAGE PM5 RIVAGE PM3
CS-R10 CS-R10-S CSD-R7 CS-R5 CS-R3
Mixing Capacity Input Mixing channels DSP-RX 120 120 – 120 120
DSP-RX-EX 288 288 – 288 288
Internal – – 144 – –
Mix Buses DSP-RX 48 48 – 48 48
DSP-RX-EX 72 72 – 72 72
Internal – – 60 – –
Matrices DSP-RX 24 (Input to Matrix supported) 24 (Input to Matrix supported) – 24 (Input to Matrix supported) 24 (Input to Matrix supported)
DSP-RX-EX 36 (Input to Matrix supported) 36 (Input to Matrix supported) – 36 (Input to Matrix supported) 36 (Input to Matrix supported)
Internal – – 36 (Input to Matrix supported) – –
Stereo buses 2
mono buses 1
cue bus 2
Local Connectors Analog in 8 (SILK) 8 (SILK) 8 (SILK) 8 8
out 8
Digital AES IN 8 8 8 4 –
AES OUT 8 8 8 4 –
Expansion Slot HY 4 (DSP-RX/-EX) 4 (DSP-RX/-EX) 3 4 (DSP-RX/-EX) 4 (DSP-RX/-EX)
MY 2+2(DSP-RX/-EX) 2+2(DSP-RX/-EX) 2 2+2(DSP-RX/-EX) 2+2(DSP-RX/-EX)
GPI IN 8
ONT 8
Word clock OUT OUT OUT – –
MIDI IN/OUT
USB File 4
rec/play 1
Redundant PSU Yes (Built in dual PSU)
Meter Bridge On screen
Lamp 4 3 4 3 2
Talkback In Yes Yes Yes No No
Video Out Yes Yes Yes No No
TC In Yes (DSP-RX/-EX) Yes (DSP-RX/-EX) Yes Yes (DSP-RX/-EX) Yes (DSP-RX/-EX)
Fault Output Yes (DSP-RX/-EX) Yes (DSP-RX/-EX) Yes Yes (DSP-RX/-EX) Yes (DSP-RX/-EX)
Phones 2 x 2 connectors 2 connectors 2 connectors 2 connectors 1 connector
AC Inlet 2 (V-Lock Type)
Scene Memory Number of Scenes 1000
Recall Safe Yes
Focus Recall Yes
Fade Time Yes (0s ~ 60s)
Preview Yes
Selective Load / Save Yes
Global Paste Yes
Event List Yes
Overlay Yes
Isolate Yes
Tactile Control Keys Yes
Input Channel Functions Gain Compensation Yes
Silk Yes (with RPio)
Digital Gain Yes (-96dB ~ +24dB)
ATT Yes
HPF 20Hz~2000Hz, -6/-12/-18/-24dB/oct Selectable
PEQ 4 Band Full PEQ (4 algorithms, RTA overlay support)
Dynamics 1 Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
Dynamics 2 Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
Input Delay Yes (0ms ~ 1000ms)
Pan Center Nominal
DCA Group 24 (Output DCA support)
DCA Rollout Yes
MUTE Group 12
Number of Inserts 4 slots on each 2 insert point
Direct Out Yes
Output Channel Functions PEQ 8 Band Full PEQ
GEQ Plug-in
Dynamics 1 Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
Output Channel Delay Yes (0ms ~ 1000ms)
MUTE Group 12
Number of Inserts 4 slots on each 2 insert point
Plug-in Number of Slots DSP-RX / Internal 384 384 384 (CSD-R7) 384 384
DSP-RX-EX 512 512 – 512 512
Number of Effect Programs More than 50
GEQ Rack Number of GEQ Racks 48
Mountable Device 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay support) / Dugan Automixer
TWINLANe Number of I / O Channels 256 in / 256 out (with HY256-TL)
Dante Number of I / O Channels 144 in / 144 out (with HY144-D)
Recording USB Memory Recording Yes
DVS Recording Yes (with HY144-D)
Broadcast Functions 5.1 Surround Panning Yes
Surround Monitor Yes
Mix Minus Yes
L-Mono / R-Mono / LR-Mono No
Monitor Solo Mode Yes
Oscillator Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise
Other Functions Port to Port Yes
Dual Console Yes
DSP Mirroring Yes Yes No Yes Yes
Timecode Reader/Display Yes
Timecode Chase (Event List) Yes
GPI/MIDI Yes
RTA Yes
Output Port Delay Yes (0ms ~ 1000ms)
Mix/Matrix to Input Yes
Sub In Yes
Theatre Mode Yes
User Interface Display 15 inch Touch Panel x 2 15 inch Touch Panel x 1 15 inch Touch Panel x 2 15 inch Touch Panel x 3 15 inch Touch Panel x 1
Centralogic Section Yes
Faders 12 + 12 + 12 + 2 12 + 12+ 2 12 + 12 + 12 + 2 12 + 12 + 12 + 2 12 + 12 + 12 + 2
Selected Channel Encoders All Parameters All Parameters All Parameters Dynamics, GAIN, HPF, EQ, PAN, Function Knob Dynamics, GAIN, HPF, EQ, PAN, Function Knob
Channel Encoder Yes
Channel Name / Color Display Yes Yes Yes No Yes
Custom Fader Banks Yes (6 x 5 on each bay)
User Defined Keys 12 (x 4 banks)
User Defined Knobs 4 (x 4 banks) 4 (x 4 banks) 4 (x 4 banks) 3 (4 x 4 banks can be assigned) 1 (4 x 4 banks can be assigned)
Touch and Turn Knob Yes (2) Yes (1) Yes (2) Yes (3) Yes (1)
Monitor Level Knob Yes (2: A and B) Yes (2: A and B) Yes (2: A and B) Yes (2: A and B) Yes (2: A and B)
Wooden Arm Rest Yes
Software Editor RIVAGE PM Editor
StageMix RIVAGE PM StageMix
MonitorMix Yes (V4.0 or later)
Console File Converter Yes
Dimensions (WxHxD) CS-R10: 1,549 x 417 x 848mm
(61.0″ x 16.4″ x 33.4″)		 CS-R10-S: 1,128 x 417 x 848mm
(44.4″ x 16.4″ x 33.4″)		 CSD-R7: 1,549 x 417 x 848mm
(61.0″ x 16.4″ x 33.4″)		 CS-R5: 1,444 x 414 x 643mm
(56.9″ x 16.2″ x 25.3″)		 CS-R3: 1,145 x 385 x 650mm
(45.1″ x 15.2″ x 25.6″)
Net Weight CS-R10: 85 kg (187 lbs) CS-R10-S: 67 kg (147.7 lbs) CSD-R7: 94 kg (207 lbs) CS-R5: 42 kg (92.6 lbs) CS-R3: 38 kg (83.8 lbs)
Included Accessories CS-R10: Dust cover, Gooseneck Lamp LA1L x 4 CS-R10-S: Dust cover, Gooseneck Lamp LA1L x 3 CSD-R7: Dust cover, Gooseneck Lamp LA1L x 4 CS-R5: Dust cover, Nuendo Live CS-R3: Dust cover, Nuendo Live
